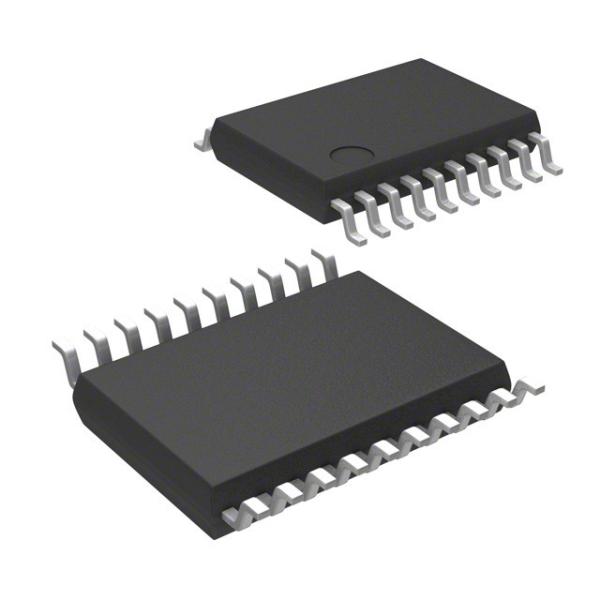

Mainstream Value Line MCU Chips Robustness STM8S003F3P6TR With 8 KB Flash Memory

Brand Name : ST

Model Number : STM8S003F3P6TR

Certification : ROHS

Place of Origin : Original & New

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000pcs

Delivery Time : 1-3Days

Packaging Details : BOX

Description : STM8 STM8S Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 20-TSSOP

Series : Mainstream Value line 8 bit MCU

Package : LQFP32 / TTSOP20 / QFPN20

Application : Value Line 8-bit Microcontrollers offer 8 KB of Flash program memory

Type : 16 MHz STM8S 8 bit MCU

D/c : New

Lead time : 0-3 Days

Contact Now

STM8S003F3P6TR MCU Chips Mainstream Value line 8-bit MCU with 8 Kbytes Flash

Description:

The STM8S003F3/K3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016).

The STM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost.

Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

The system cost is reduced thanks to a high system integration level with internal clock oscillators, watchdog, and brown-out reset.
Full documentation is offered as well as a wide choice of development tools.

Key Features

16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
Extended instruction set
Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

Applications

Consumer Electronics, Computers & Computer Peripherals, Embedded Design & Development, Utilities
